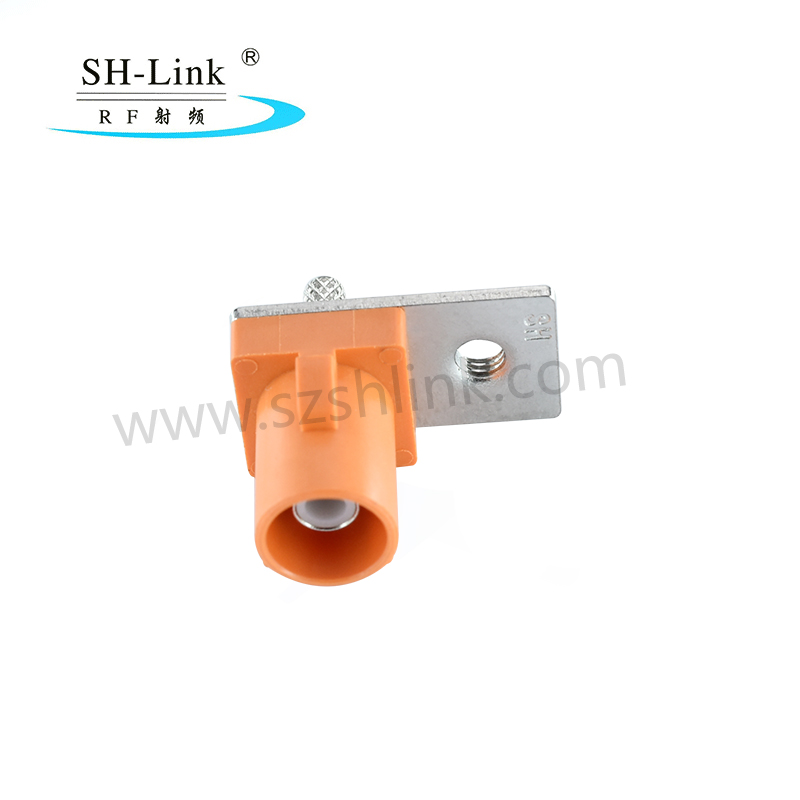

FAKRA SMB-C-J1.5-7 M Pastel Orange

FAKRA Connectors
Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 3 GHz and meet the particular mechanical and environmental requirements of the automotive industry.FAKRA connectors are used in Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Infotainment Systems.

BV)@B~[H8~X0BD2J4BZOGG7.png KTN0`O(8BP[{1Q1SFQV_J@C.png
Product NO: FAKRA SMB CONNECTOR
Product Design Level: Universal connector (Level 2)
Working Voltage: 335V
Temperature Range: -40℃~+85℃
Frequency Range: DC-6GHz
Impedance: 50Ω
Contact Resistance: Center Contact≤6mΩ     Outer Contact≤1mΩ
Insulation Resistance: 1000MΩ
Medium Pressure: 1000V(Conform to the MIL-PRF-39012 paragraph 3.17)
Insertion force: ≤ 25N
Pull out the output:  ≤25N
Environment temperature:  -40℃~+105℃
Salt Fog: >48H


  • *
  • *
