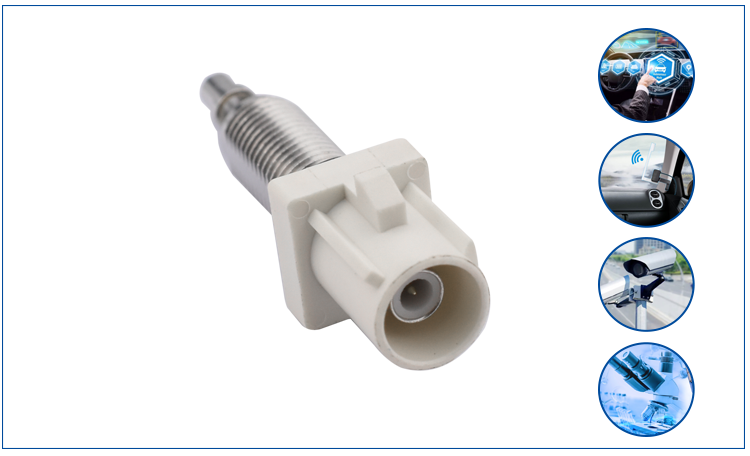

FAKRA SMB-J1.0-4 B White

• The product technical characteristics:
Body:  Brass, Ni-plated
Socket:  beryllium-copper, Gold-plated
Insulator:  PTFE
Crimp ferrule: brass, Ni-plated
O-ring:  beryllium-copper
Shell:  PA66+30%GF
• Technical characteristics
Impedance:  50Ω
Frequency Range:  4GHz
Withstanding Voltage:  1000V(RMS)
Contact resistance:

Center contact: ≤ 20m       Outer contact: ≤10m

Insulation: ≥1,000MΩ
VSWR:  DC - 2GHz<1.2
• Mechanical characteristics:
Assembly: locked
Durability:  ≥ 500 cycles
Temperature:  - 40 - +85°C


   It is mate with the same colors or connector and socket, and the structure is to be
double-locked and fool-proofing for them.

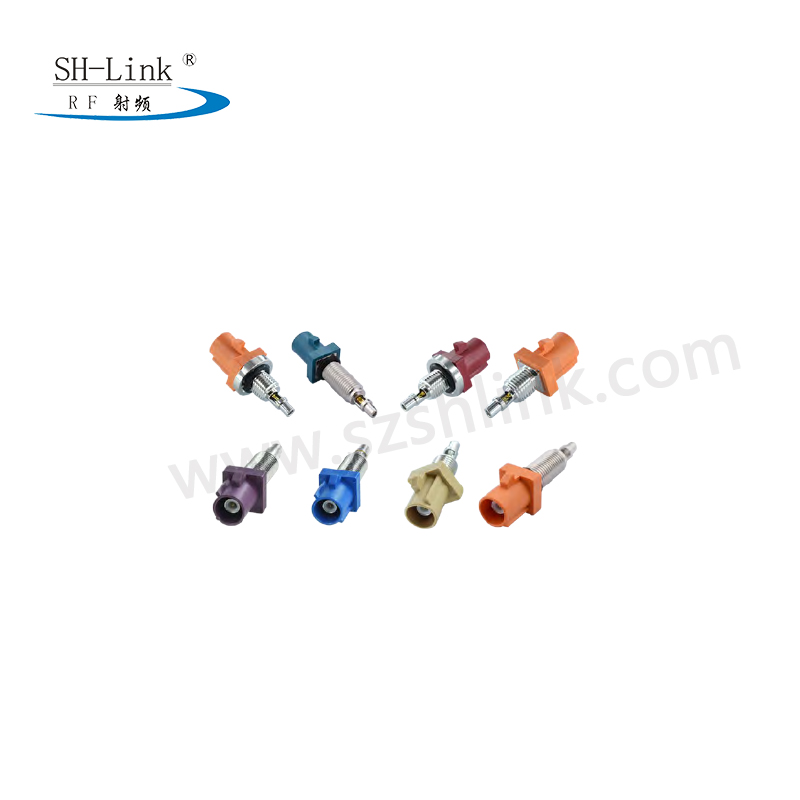

                                         FAKRA Screw Thread Male Connectors
                 FAKRA connector is one of the auto parts. They are widely used in GPS, Remote
control, car phone, car TV, hi-fi equipment, antennas, etc.
               Can be customized to the drawing sample processing, welcome to consult
           Shenzhen Sihanming technology Co., Ltd. (Shenzhen Sihan Commumication Technology)
was established in 2006. Our company occupies 4500 square meters filed. There are more  than
100 employees, 15% of them are engineers and technicians . We are professional in  designing,
developing,producing and sale of radio frequency coaxial connectors.
























  • *
  • *
