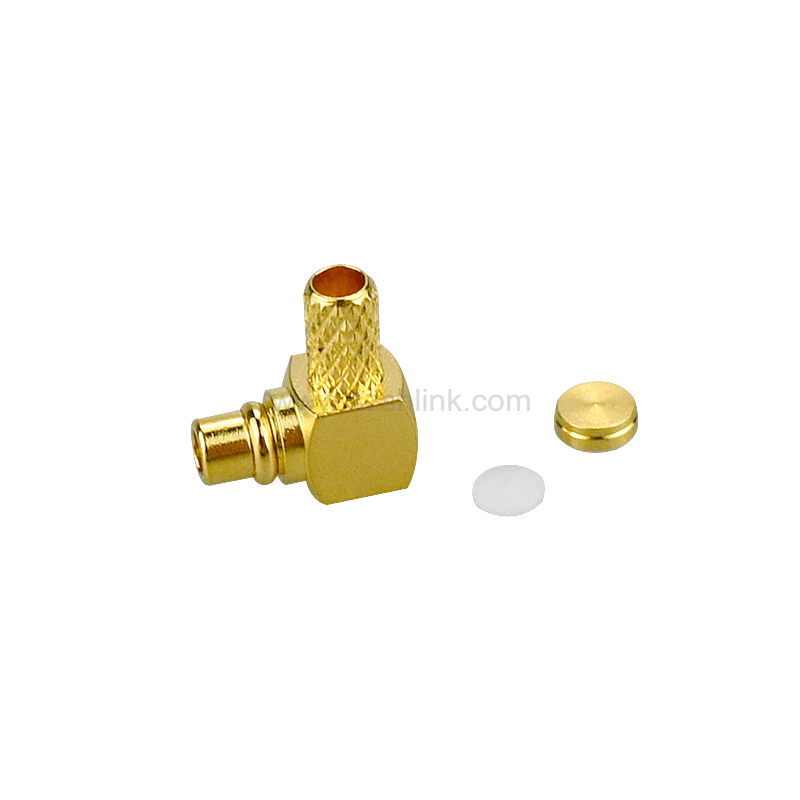

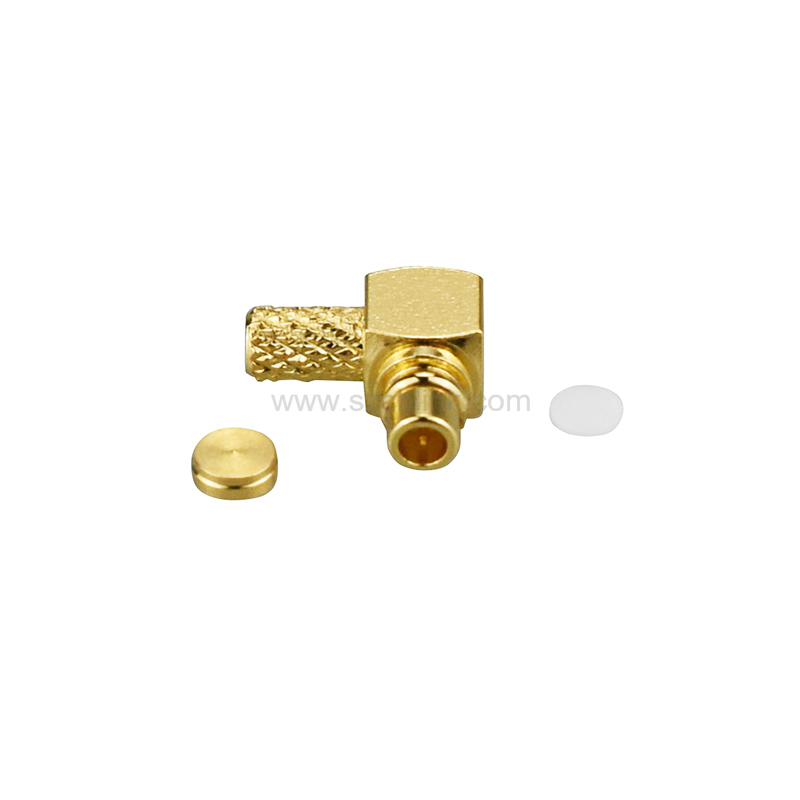

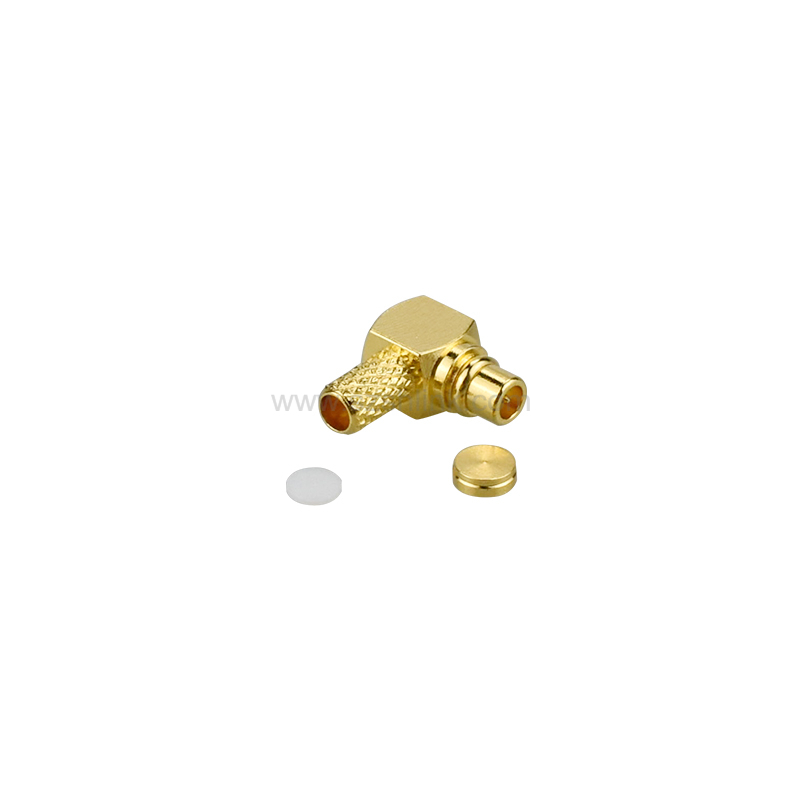

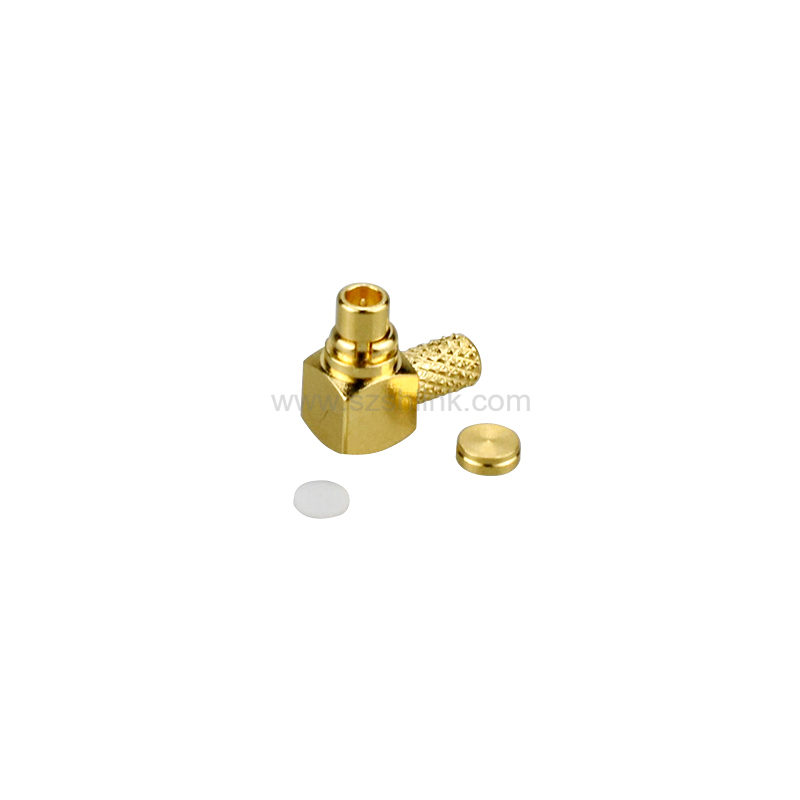

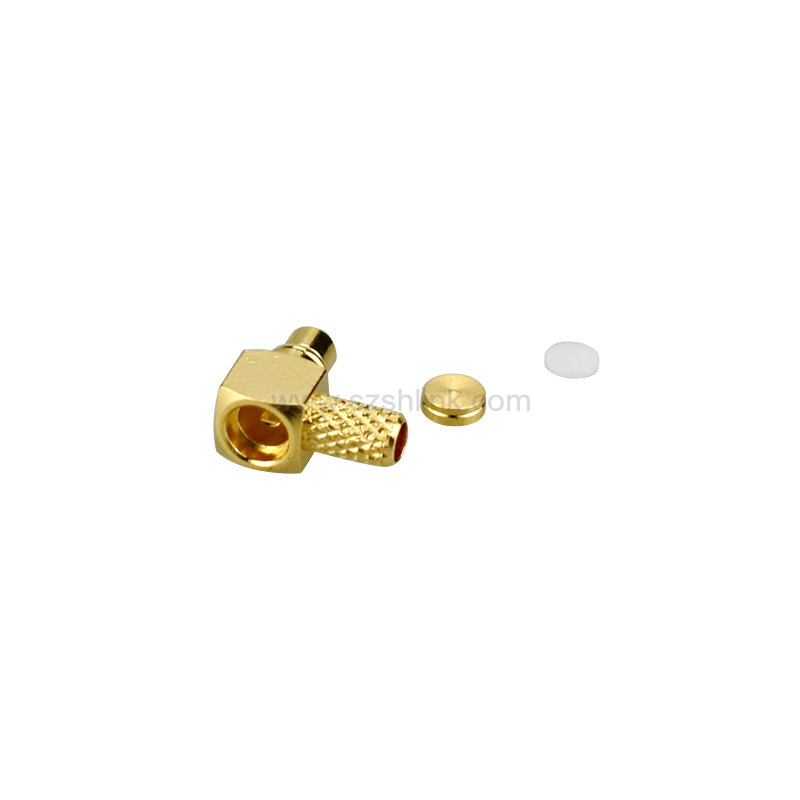

MMCX type RF coaxial connectors are characterized by their small size, light weight, and convenient and
reliable  connection. They can be widely used in small mobile communication and network equipment 、
where size and weight are important for connecting RF coaxial cables or transmitting RF signals.

Frequency range: DC-6GHz,
Impedance: 50 ohms,
Temperature resistance: -55°C-＋125°C,

 Connector Materials:
body: Brass with gold plating;
pin contact: Brass with gold plating;
Insulator: PTFE；
Cover：Brass with gold plating

Clamping ring: Gold-plated beryllium copper

We offer high-quality, high-volume production.
