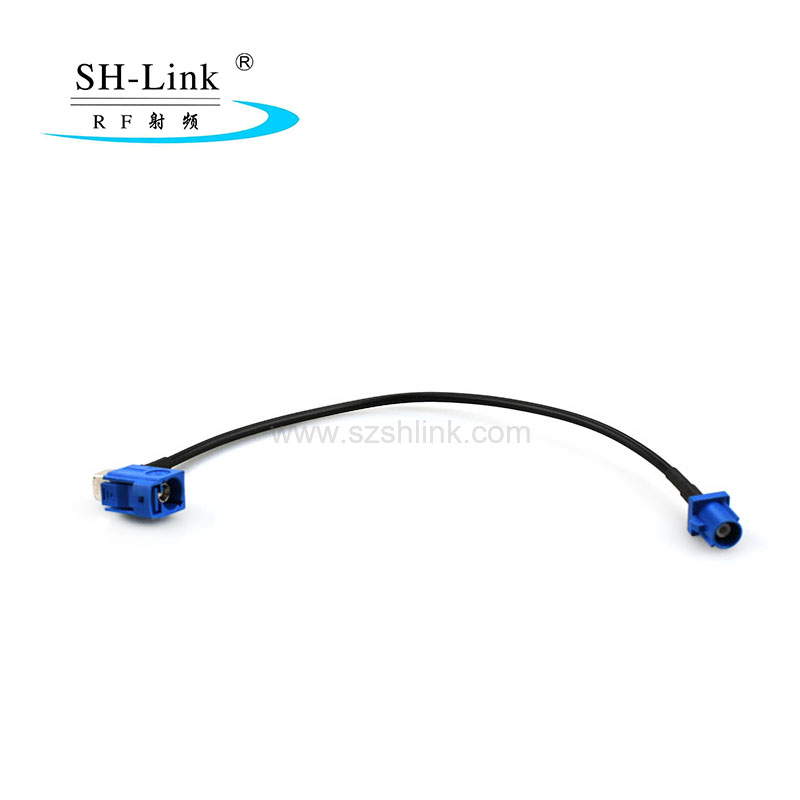

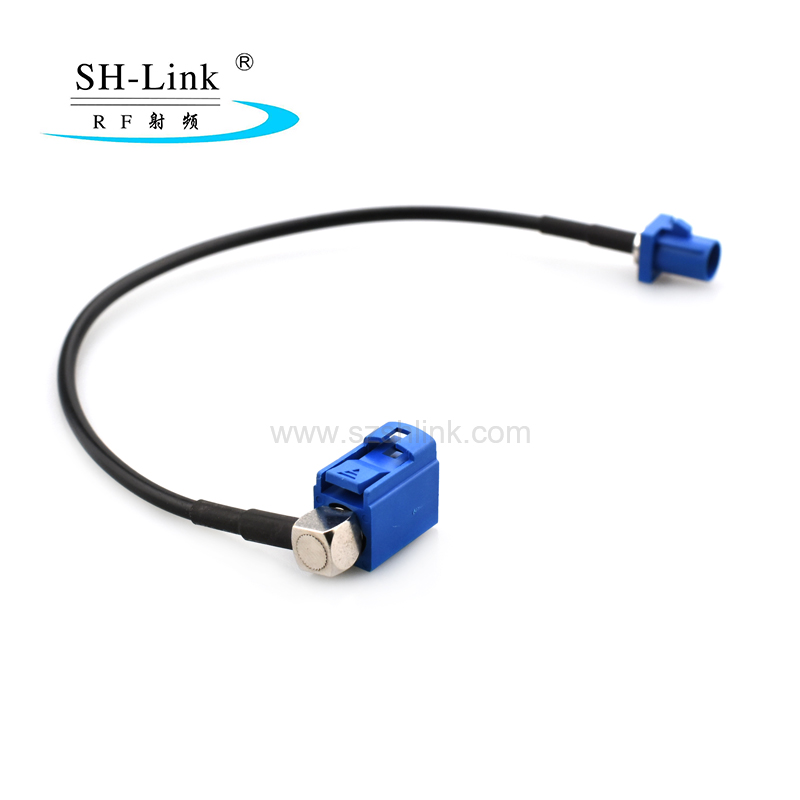

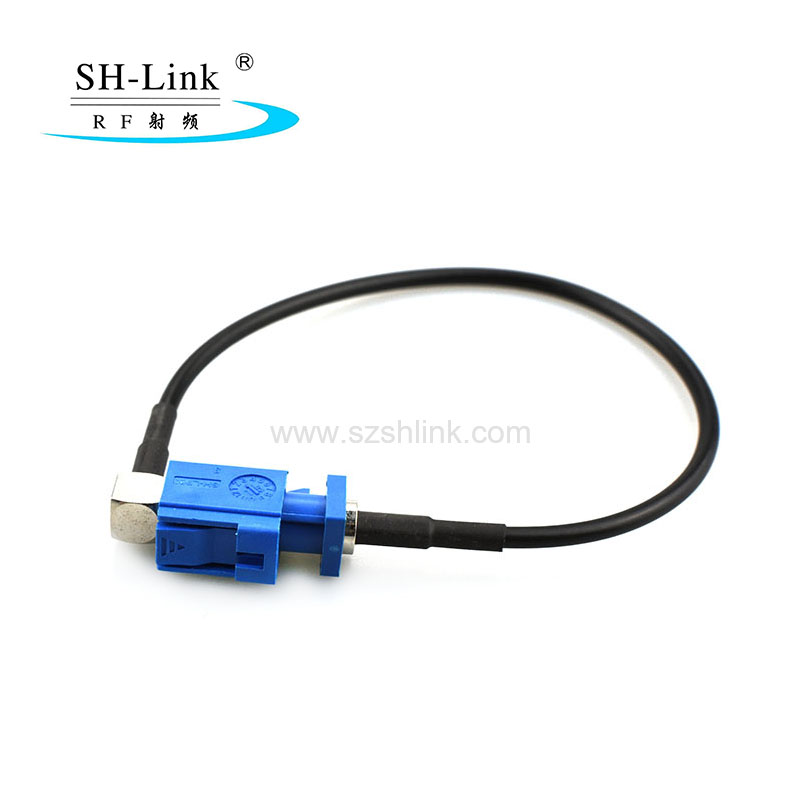

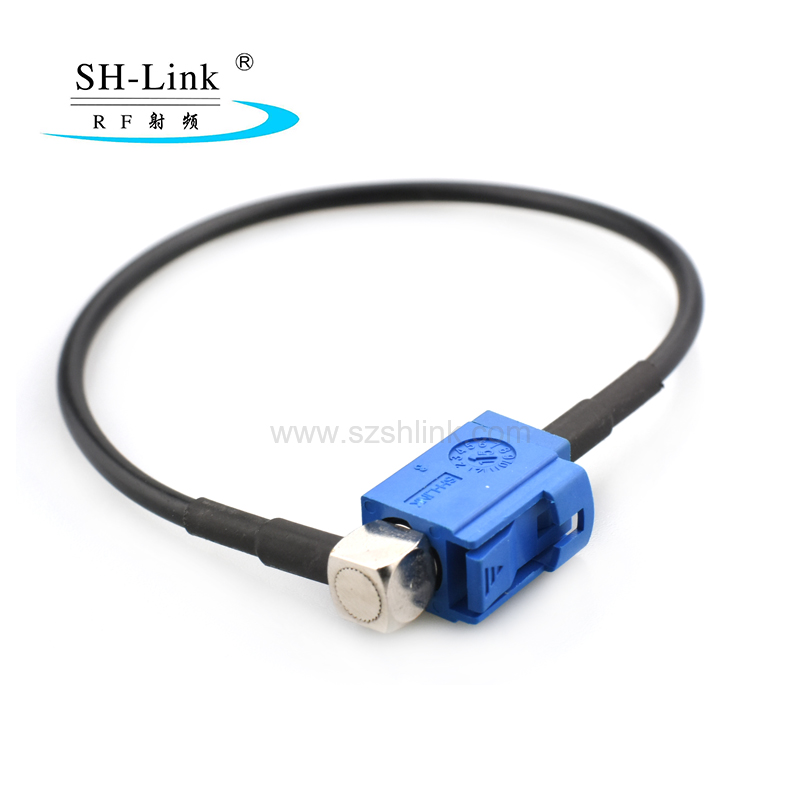

The RG174 cable with Blue Fakra Right Angle C type connector to Fakra male C type connector
is widely used in automotive electronics, RF test and measurement, network communication and
IoT (industrial routers, wireless APs, short-range signal transmission of IoT terminals) and consumer
electronics.

The RG174 coaxial cable is a black flexible cable with an outer diameter of 2.8mm, a frequency of
DC-6 GHz, an impedance of 50 ohms, and a temperature range of -40°C to 105°C. It is suitable
for applications with high requirements for space and flexibility.

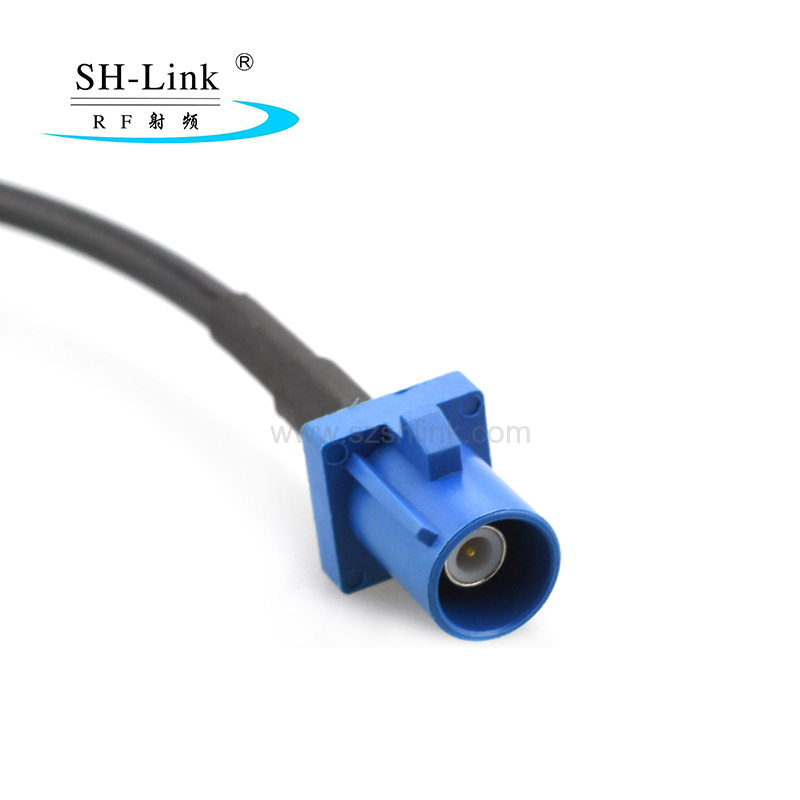

Fakra Male Connector materials:

1. Body: Nickel-plated brass;

2.  Insulator: PTFE;

3. Center pin: Gold-plated brass;

4. Outer shell: PA66+30%GF;
5.Copper tube: Nickel-plated brass;

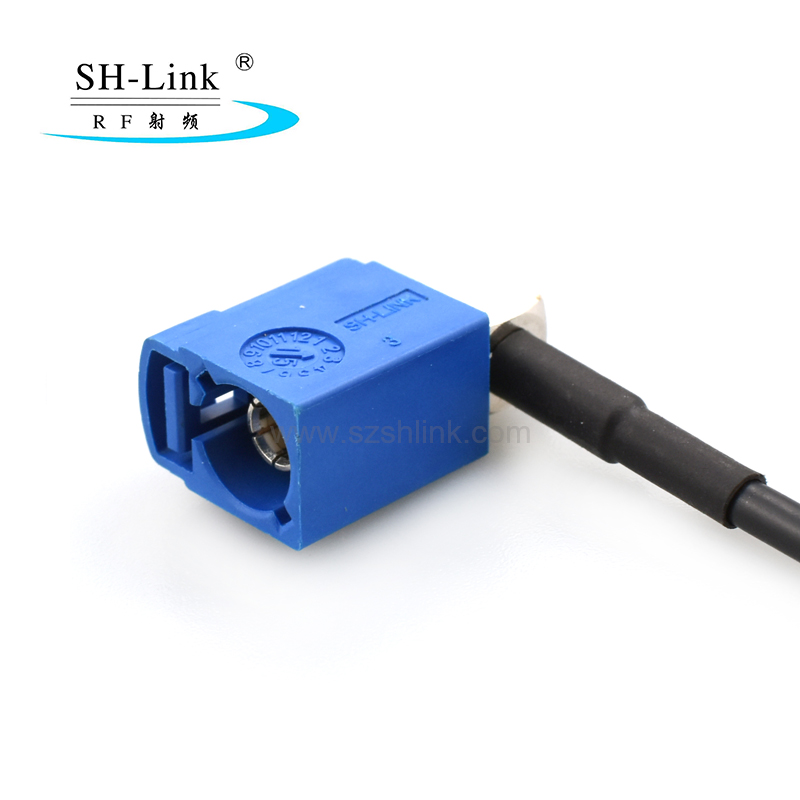

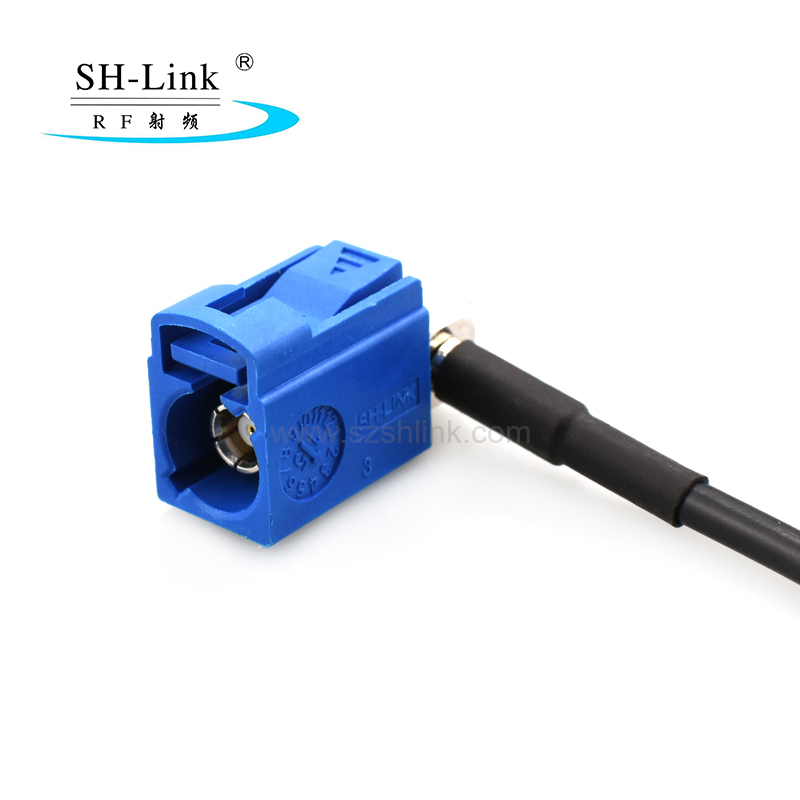

Fakra Right Angle C type connector  materials:

1. Body: Nickel-plated brass;

2.  Insulator: PTFE;

3. Center pin: Gold-plated beryllium copper;

4. Copper tube: Nickel-plated brass;

5. Clamping ring: Beryllium copper;
6. Outer shell: PA66+30%GF;

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each model
corresponds to a different color,and different models are incompatible.

We offer high-quality, high-volume production services. We
also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are
welcome.
