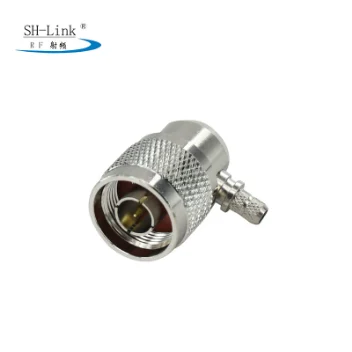

Coaxial cable N right angle connector company,N plug for LMR240,LMR195,LMR400

Type N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance

Consult Now

Product Description

Type N is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. they are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHz.Specifications：

Electrical Specifications
Frequency	DC to 6 GHz
Voltage Rating	1000 VRMS (sea level)
Nominal Impedance	50 ohms
Orientation	Straight
DWV	2500 VRMS min. at 60 Hz (sea level)
Insulation Resistance	5000 megaohms min.
Temperature Range	-65°C to +165°C
Termination Style	Cable crimp
MATERIALS
Dielectrics	PTFE Fluorocarbon
Contacts (Female)	Beryllium copper, phosphor bronze
Male Outer Contacts	Phosphor bronze, brass
Gaskets	Silicone rubber, GR 50-60
Other Metal Parts	Brass
PLATING
Center Contacts	Silver, gold
Metal Parts	Passivated, nickel, silver, albaloy
