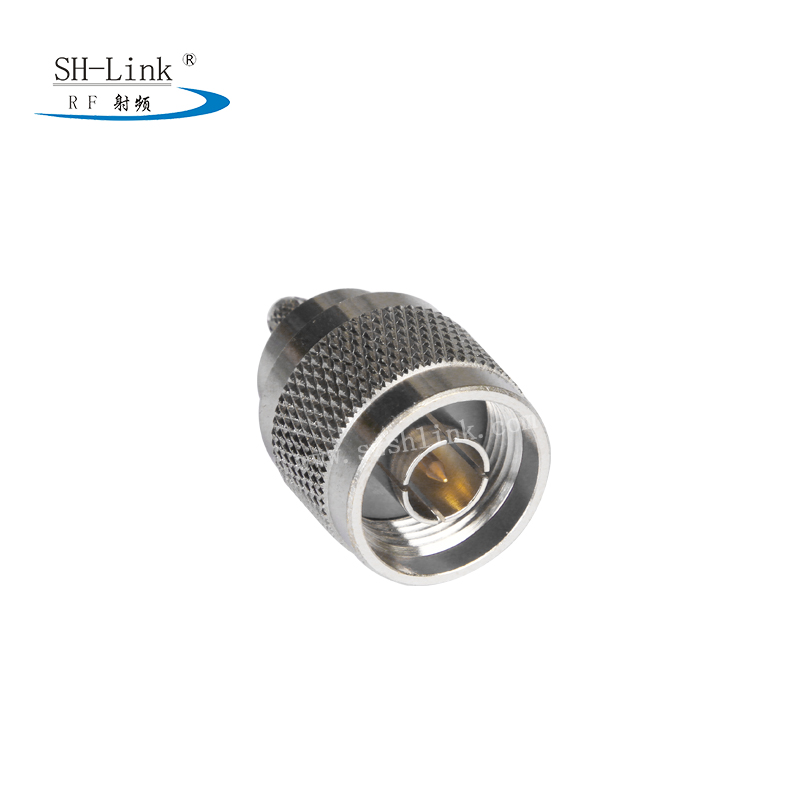

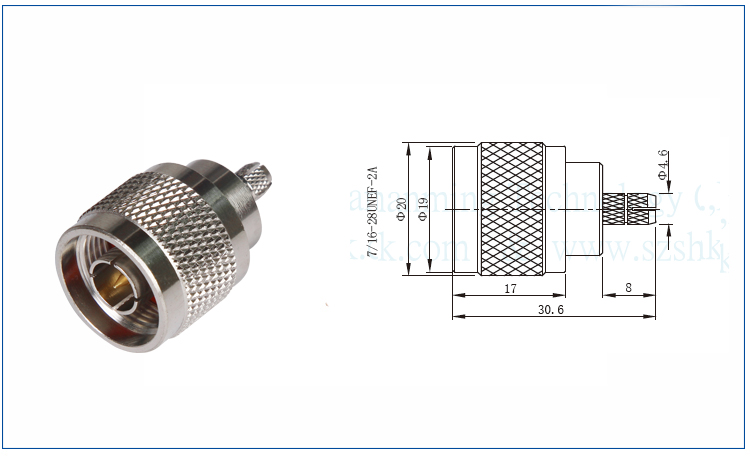

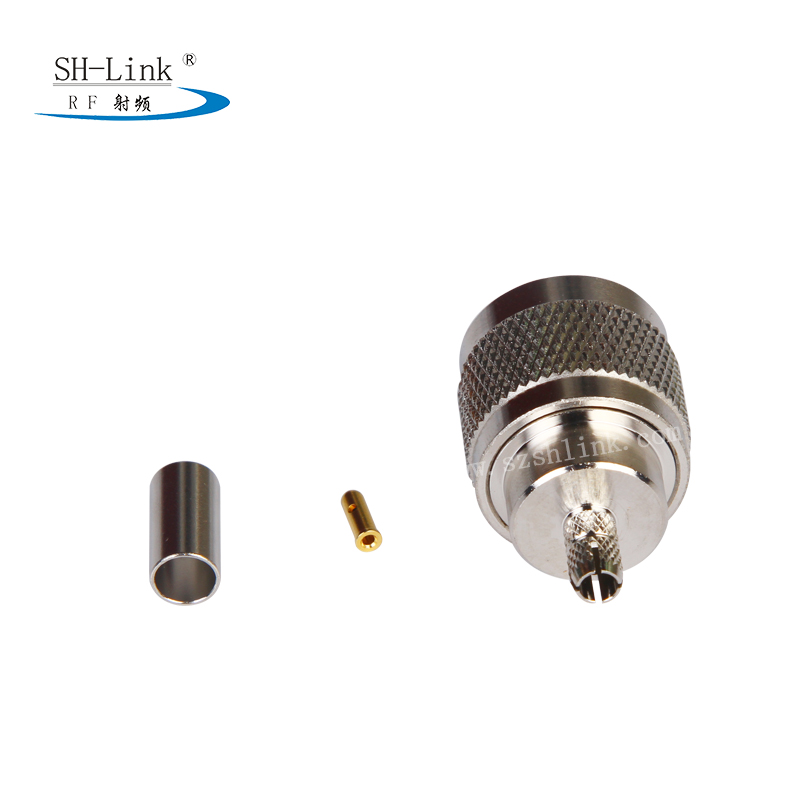

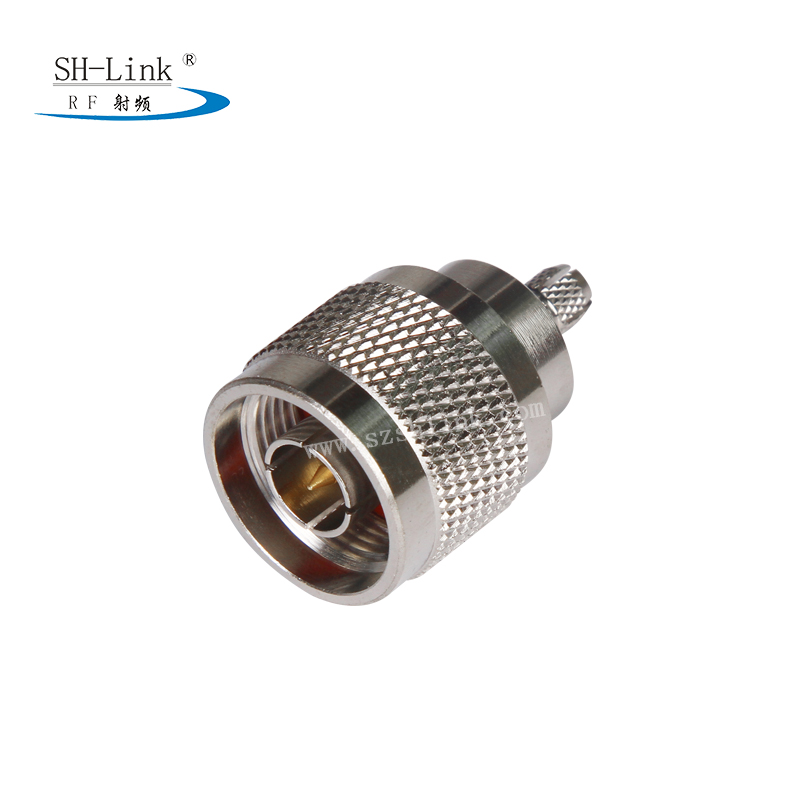

N Connectors male crimp on Rf Coaxial Connector for RG-58 Cable

MAJOR TECHNICAL CHARACTERISTICS
Temperature range -55+155℃(PE Cable -40 +85℃)
Vibration  100m/S²(10-2000Hz)15g
Impedance 50Ω
Frequency range DC-11GHz
Working voltage 1000V r.m.s at sea level
Withstanding voltag 2500V r.m.s at sea level
Contact resistance Center contact ≤1 mΩ          Outer contact ≤1mΩ
Insulation resistance ≥5000MΩ
Center conductor retention force ≥0.56N
Insertion loss ≤0.24dB/6GHz
Durability(mating) ≥500次(Cycles)
  • *
  • *
