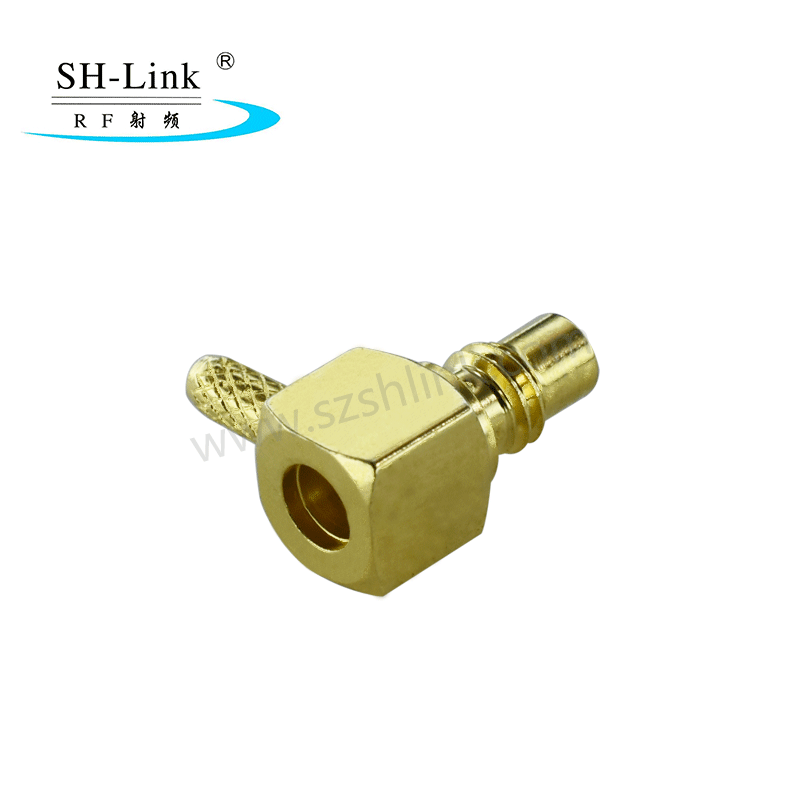

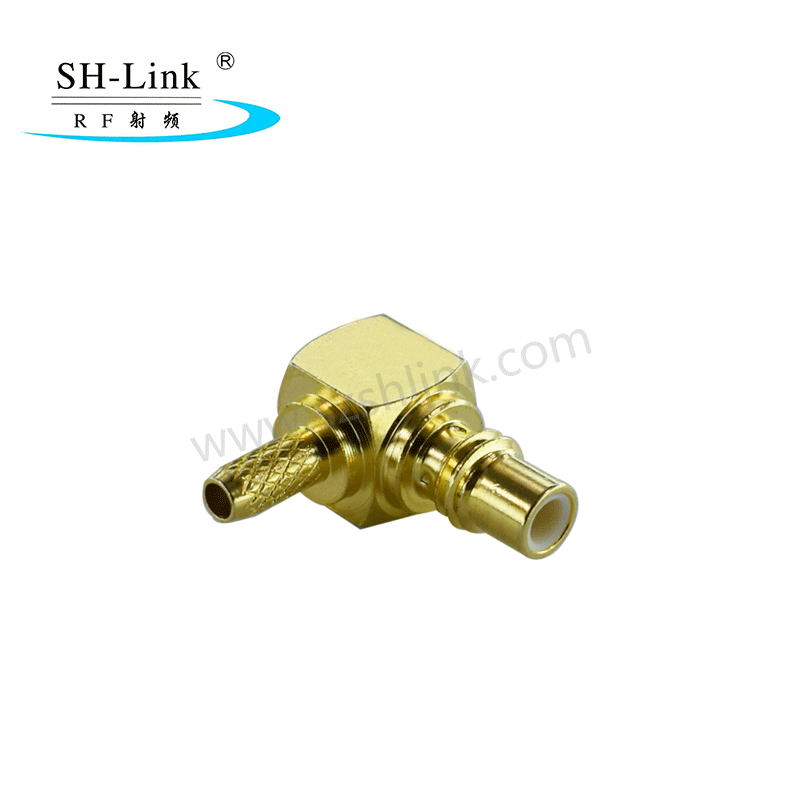

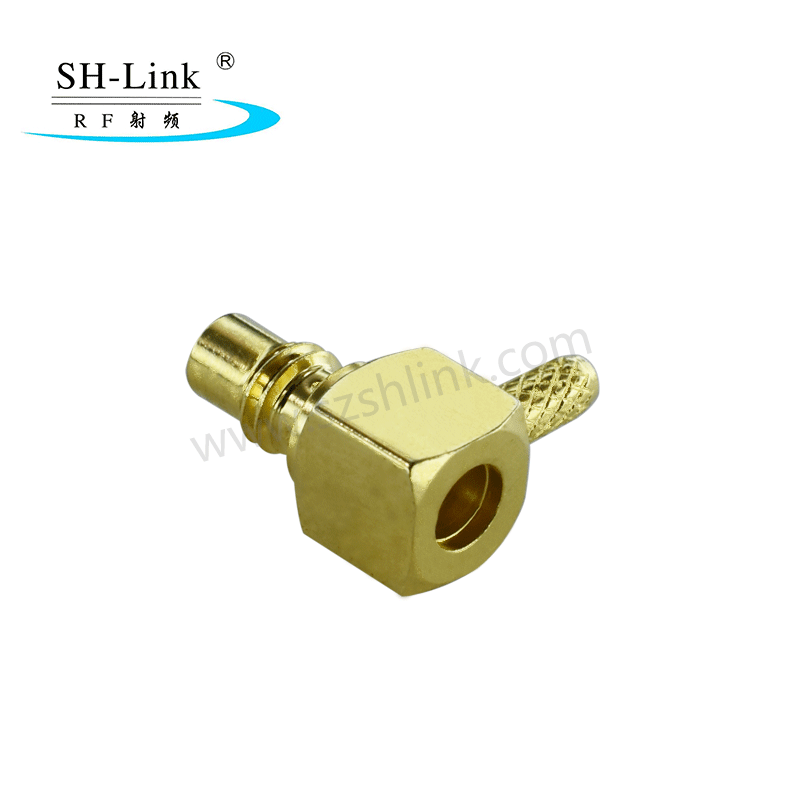

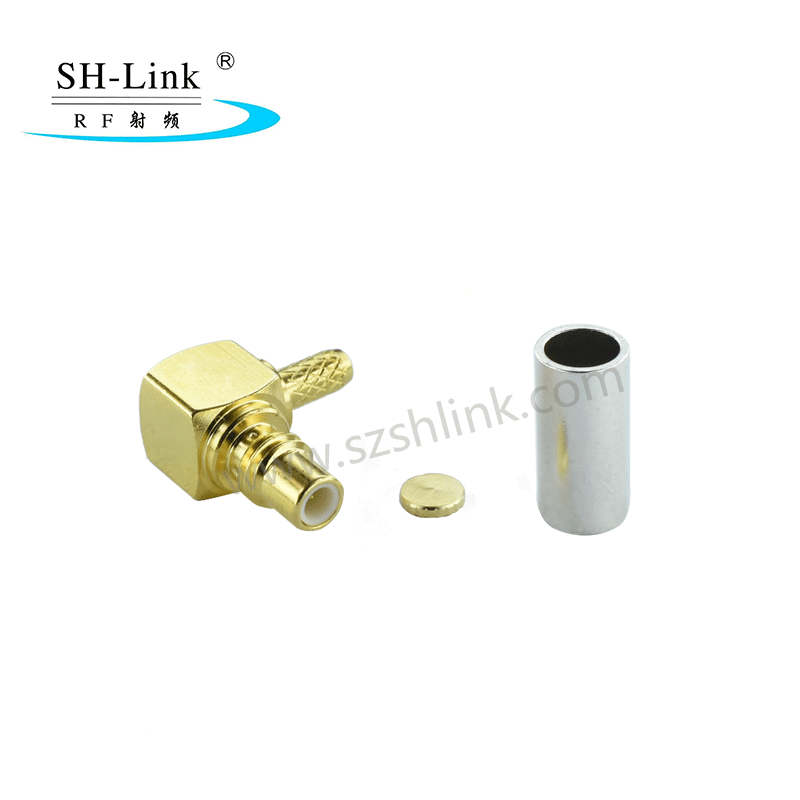

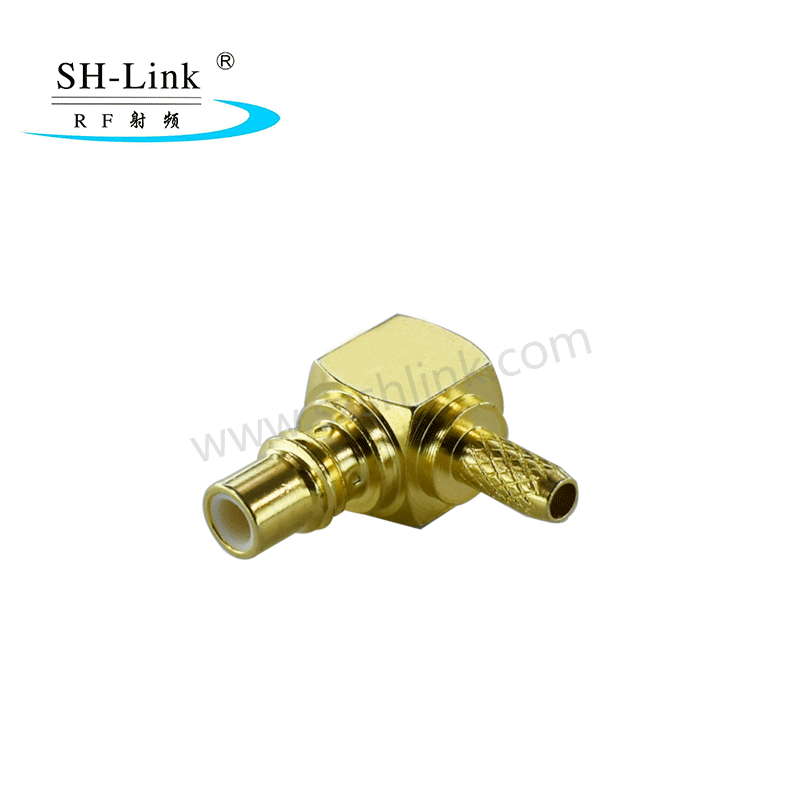

MMCX descriptions：TYPE MMCX RF Coaxial Connector is a Kind of Microminiature Product Smaller than type MCX.Characteristic impedance is 50Ω.The characteristic of connectors is in Small Volume、Light weight、Convenient Connection and reliable.They are widely used in Connect with the RF Coaxial Cables, Transmission of RF signal,equipments or small-sized communications Network that are demanding on systematic volume and weight.by using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assembly line.

Temperature range	-55—+155℃（PE Cable -40—+85℃）
Impedance	50Ω
Frequency range	DC-6GHz
Working voltage	170V r.m.s at sea level
Withstanding voltage	500V r.m.s at sea level
Contact resistance
Center contact	≤5mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥1000MΩ
Center conductor retention force	≥0.28N
Insertion loss	0.18dB/1GHz
Engagement force	≤15N
Disengagement force	≥6N
Voltage Standing Wave Ratio
Straight	≤1.25/3GHz
Right angle	≤1.43/3GHz
Durability(mating)	≥500times(Cycles)
