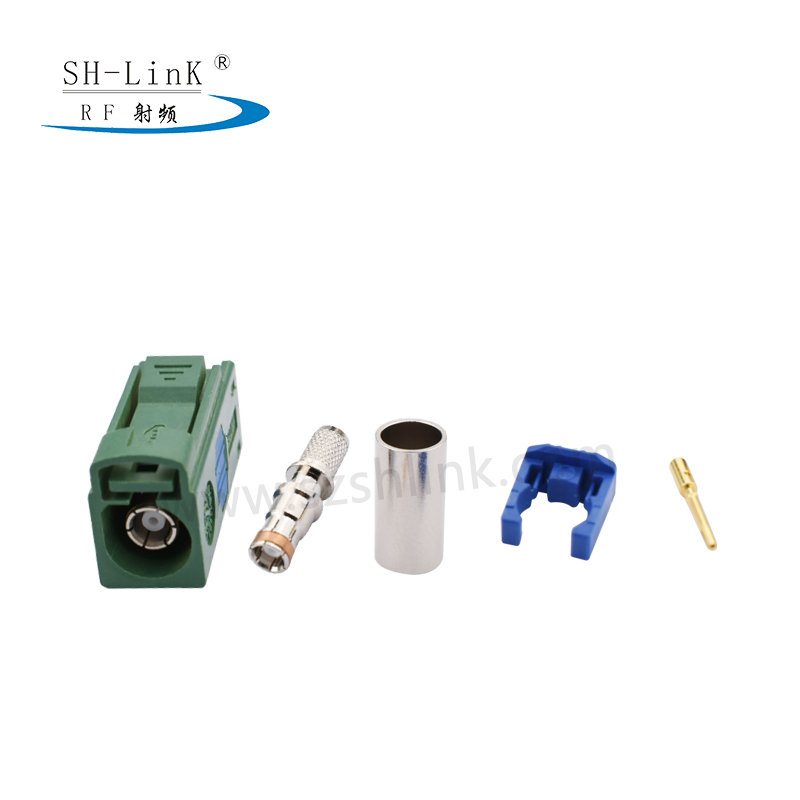

FAKRA SMB-C-K1.5-1 E Green

FAKRA Connectors

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 3 GHz and meet the particular mechanical and environmental requirements of the automotive industry.FAKRA connectors are used in Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Infotainment Systems.

• The product technical characteristics:
   Body:  Brass, Ni-plated
   Socket:  beryllium-copper, Gold-plated
   Pin contact:  Brass
   Insulator: PTFE
   Crimp ferrule:  brass, Ni-plated
   O-ring: beryllium-copper
   Shell: PA66+30%GF
• Technical characteristics
   Impedance:  50Ω
   Frequency Range:  4GHz
   Withstanding Voltage:  1000V(RMS)
   Insulation: ≥1,000MΩ
   VSWR: DC - 2GHz<1.2
•  Mechanical characteristics:
   Assembly:  locked
   Durability: ≥ 500 cycles
   Temperature: - 40 - +85°C
































  • *
  • *
