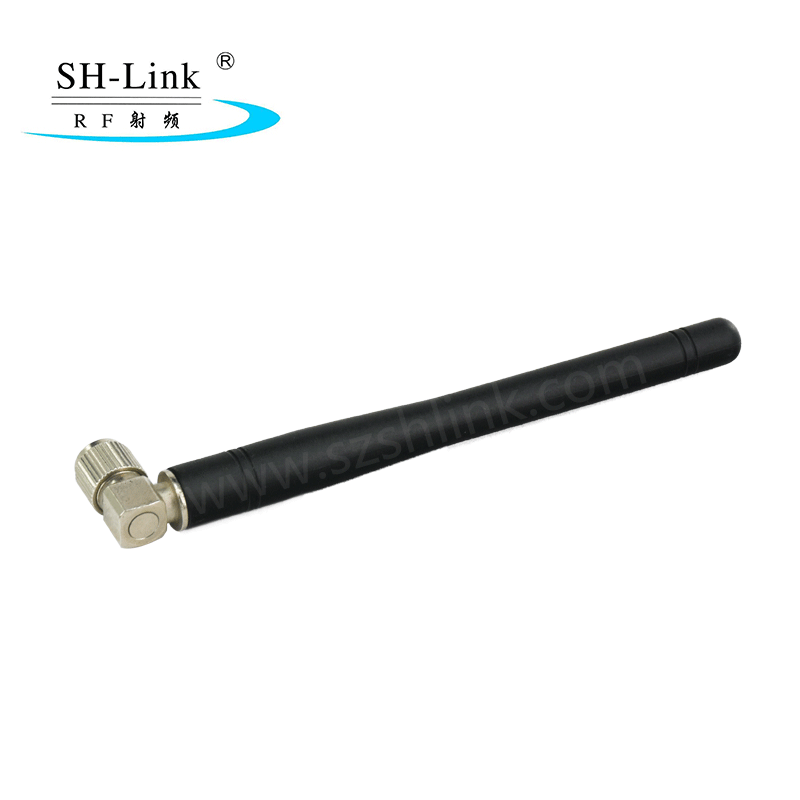

High performance odm 2.4GHz N male connector antenna manufacturer,connector for flexible cable


High performance odm 2.4GHz N male connector antenna manufacturer


1.smaller size,easy mating and reliable
2.2.4GHz antenna

3.High quality
4. good price


Technical Data
1)Material/Plating
Material Plating
Connector Body Brass  Nickel plating
Center contact male Brass Gold plating
Center contact female Bronze Gold plating
Outer contact Nickel plating
Insulator PTFE
Crimp ferrule Annealed copper Nickel plating
Plastic housing P.A.
2)Electrical
Nominal impedance 50Ω
Frequency range 0-4 GHz(Usable up to 6GHz)
VSWR 1.3
Insertion loss 0.3db(for a mated pair)
Insulation resistance 1000MΩ min
Center contact resistance 20mΩ
Working voltage 335 Volts rms
Dielectric withstanding voltage 1000 volts rms

  • *
  • *
