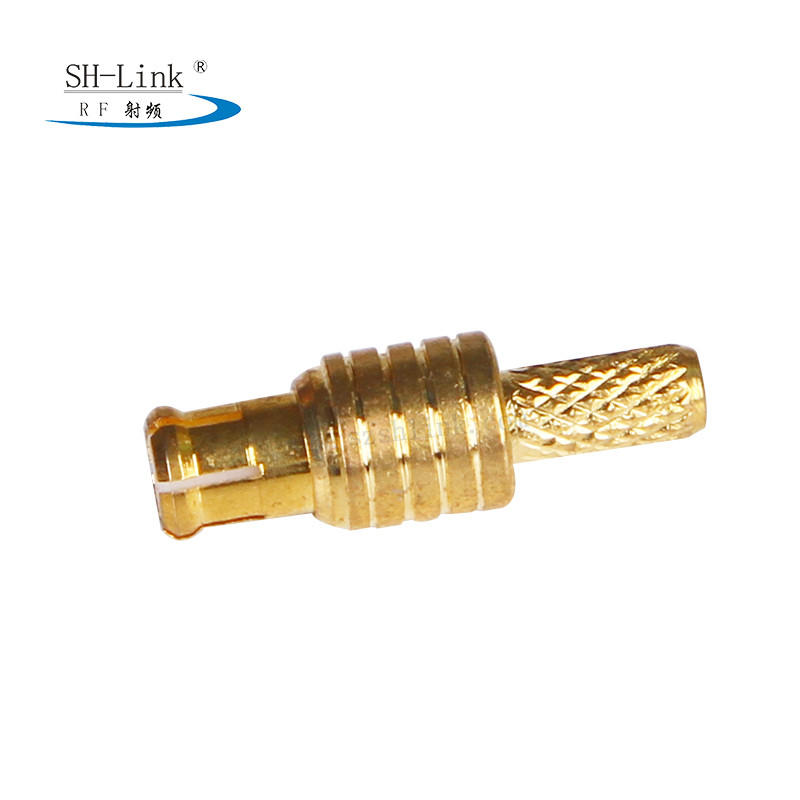

Manufacturers direct radio frequency coaxial connectors McXj-1.5 MCX straight cable head pressing RG174 316 line (MCX-C-J1.5-4)

MCX connextors use a snap-on interface and usually have a 50 Ω impedance (some are 75 Ω) .

They offer broadband capability from DC to 6 GHz.

The contact surfaces are gold-plated.

This type of connector is used on the Apple Airport Extreme Base Station's external antenna port and requires an adapter for most antennas.

MCX and the smaller MMCX connector are frequently used to connect external antennas to GPS receivers.

They are also common on USB DVB-T tuners for computers and laptops, to connect an external antenna to the tuner.

Specifications：

TECHNICAL CHARACTERISTICS
Temp.range ’-55～+125°C
Impedance 50Ω
Frequency Range DC～3GHz
Working Voltage 250V (50Ω)
Withstand Voltage 750V (50Ω)
Orientation straight
Termination Style  PCB
Salt spray test >48H
Contact resistance
Center Contact ≤ 5 mΩ
Outer Contact ≤ 2.5 mΩ
Insulation resistance ≥ 1000 MΩ
VSWR Straigh ≤1.3
Durability(mating) ≥500（cycles）
MATERIAL & PLATING
Body 　 Brass Gold plated
Inner conductor Qsn6.5-1 Gold plated
Contact head Qsn6.5-1 Gold plated
Copper pipe Brass Gold plated
Insulator PTFE           /
