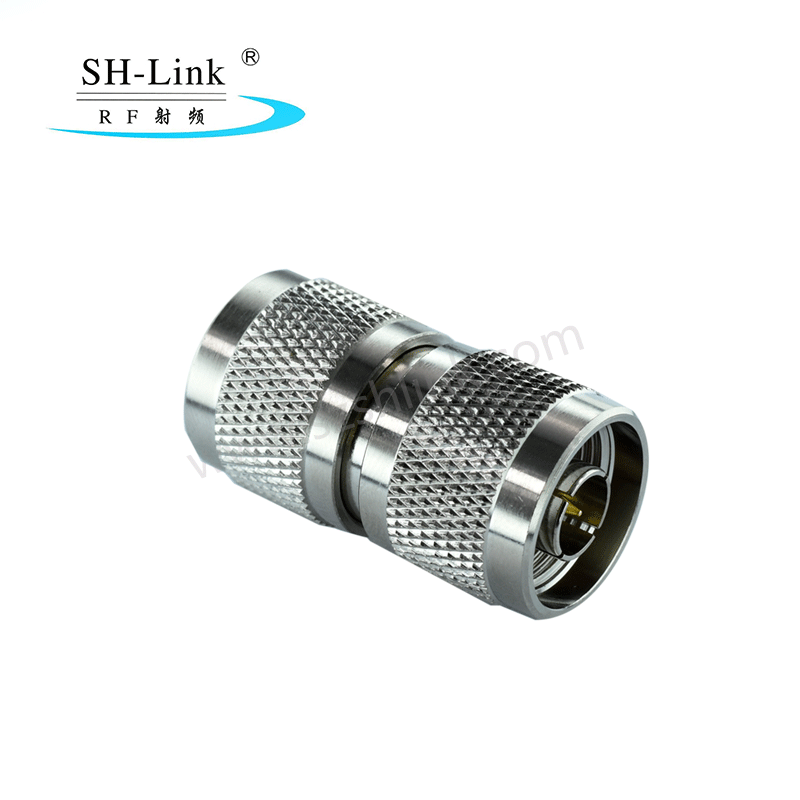

RF coaxial N male to N male adaptor

RF coaxial N male to N male adaptor
Adaptor is the basic product that used in the connection between the instrument cables with different interface.


there are two kinds type: within-type adaptor and inter-type adaptor.It has the same technical special characteristic with same class product.Within-type adaptor is listed in the catalogue of that product.Our company designs and produces various adaptors with all kingds of specifications.They have wide frequency range and low VSWR characteristics.Welcome to visit and choose.
MAJOR TECHNICAL CHARACTERISTICS

Temperature range -55—+155℃（PE Cable -40—+85℃）
Vibration 100m/S²(10-500Hz)10g
Impedance 50Ω
Frequency range DC-11GHz
Working voltage 500V r.m.s at sea level
Withstanding voltage 2500V r.m.s at sea level
Contact resistance
Center contact ≤1 mΩ
Outer contact ≤1 mΩ
Insulation resistance ≥5000MΩ
Center conductor retention force ≥0.56N
Insertion loss ≤0.24dB(6GHz)
Voltage Standing Wave Ratio
Straight ≤1.15/6GHz
Right angle ≤1.25/6GHz
Coupling nut retention force 450N
Durability(mating) ≥500(Cycles)

  • *
  • *
